Utavali-G

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0757 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:43:58+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Rebuilt after the run side re-published its maps; zero findings. Reproducible from the master.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0757
District	Botad
Taluka	Rarpur
River	Utavali
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Composite
FRL (m)	49.3
HFL (m)	49.3
Top of dam (m)	51.5
Spillway crest (m)	45.64
Design spillway capacity (m³/s)	3892.0
Gross storage (Mm³)	9.01
Catchment (km²)	205.13
Bed level, adopted (m)	42.95
Head, documented (m)	8.55
Head in DEM before correction (m)	8.95
Head after DEM correction (m)	8.55
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.13	9	729.53	1,273.90	2,692.94	37.56	`../Utavali-G/S_EG_00__S02-FW-PIP/`	`85fb4c7c685f45e2`	2026-08-24T20:06
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Utavali-G/S_EG_00_REF__S01-FW-REF/`	`56d44043187126da`	2026-08-24T20:06
`S_EG_01`	`S03-DF-REF`	retained	clean	0.03	9	—	—	—	—	`../Utavali-G/S_EG_01__S03-DF-REF/`	`7bf4c4b405a3be1d`	2026-09-26T07:47
`S_EG_02`	`S04-DF-OT`	retained	clean	0.05	9	3,146.69	3,655.34	2,692.94	74.70	`../Utavali-G/S_EG_02__S04-DF-OT/`	`b2d9acd8d59662be`	2026-09-26T08:05
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.04	9	3,040.61	—	2,944.83	79.56	`../Utavali-G/S_EG_05_SBL__S08-SO-L/`	`81a50fa5311fe5d3`	2026-09-26T08:42
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.04	9	3,027.86	—	3,169.48	79.56	`../Utavali-G/S_EG_05_SBR__S09-SO-H/`	`7aacfc48ab0774cb`	2026-09-26T09:00
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.06	9	—	—	—	—	`../Utavali-G/S_EG_06__S06-DF-OPS/`	`386732d7b3e95956`	2026-09-26T08:24

Assets

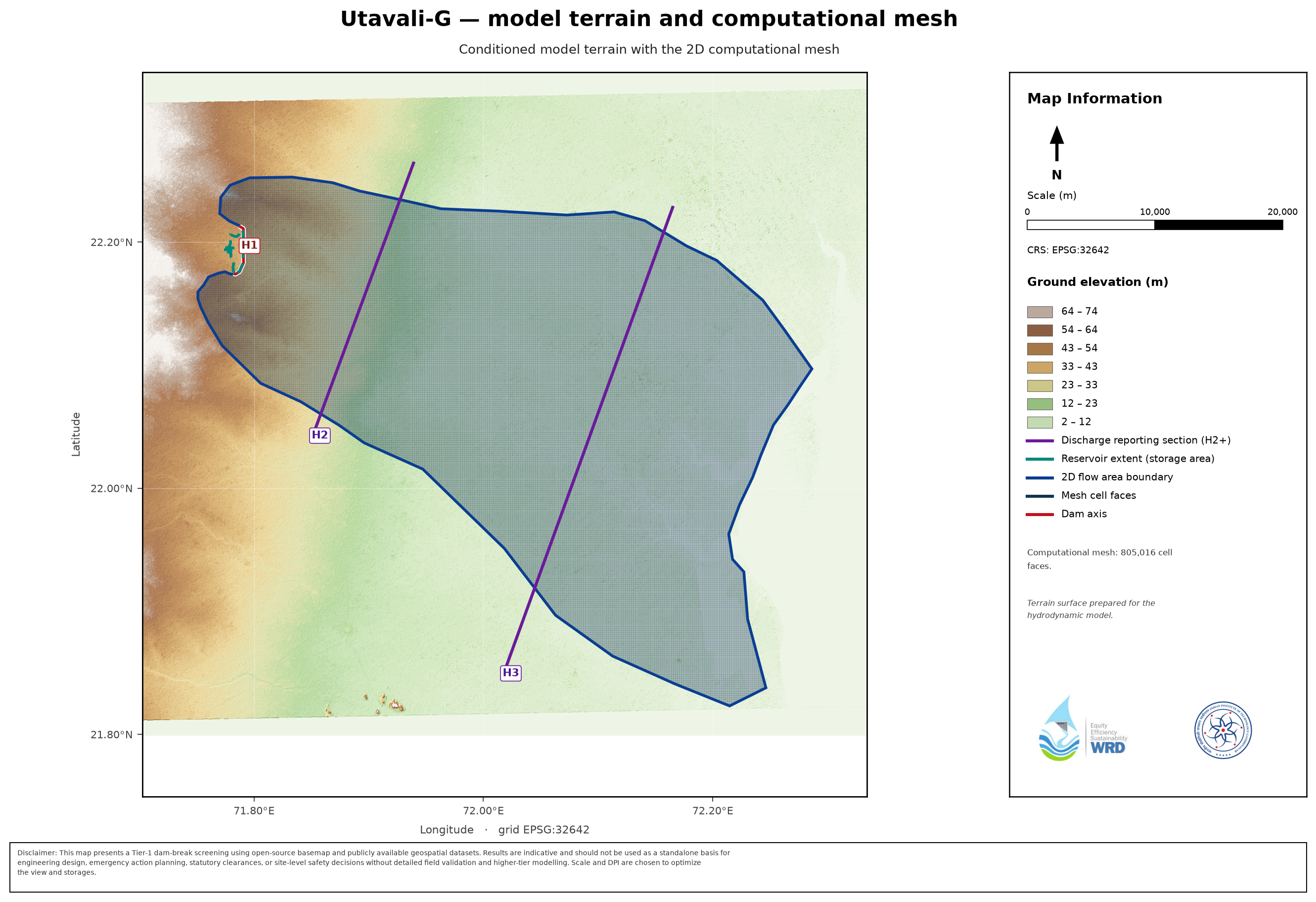

terrain plate (Fig 3.1): _maps/Utavali-G__dem.png

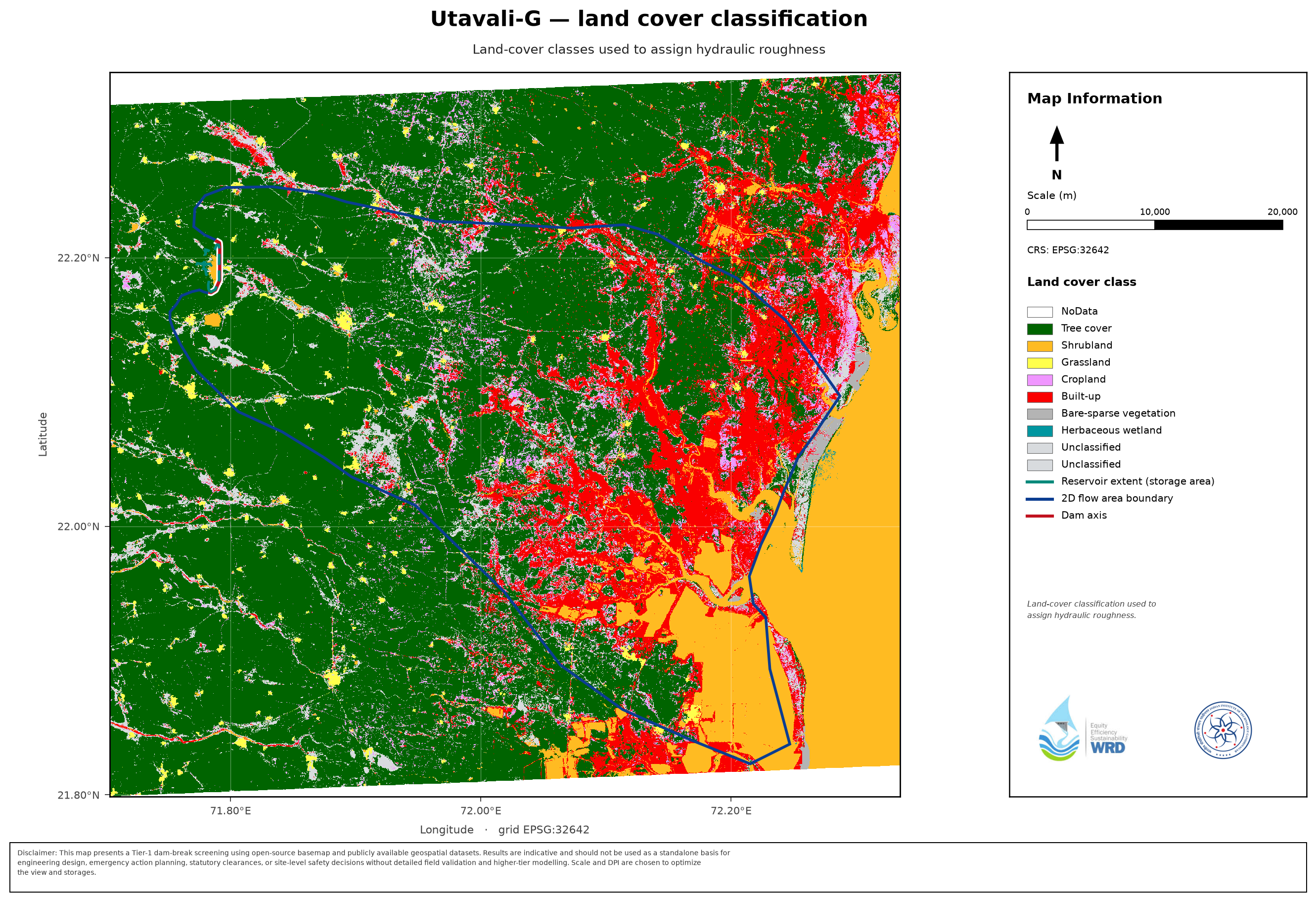

land-cover plate (Fig 3.2): _maps/Utavali-G__lulc.png
storage curve: _storage_curves/Utavali-G__storage_elevation.csv
inflow flood hydrograph: _infofiles/Utavali-G__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Utavali-G__inflow_baseflow_hydrograph.csv

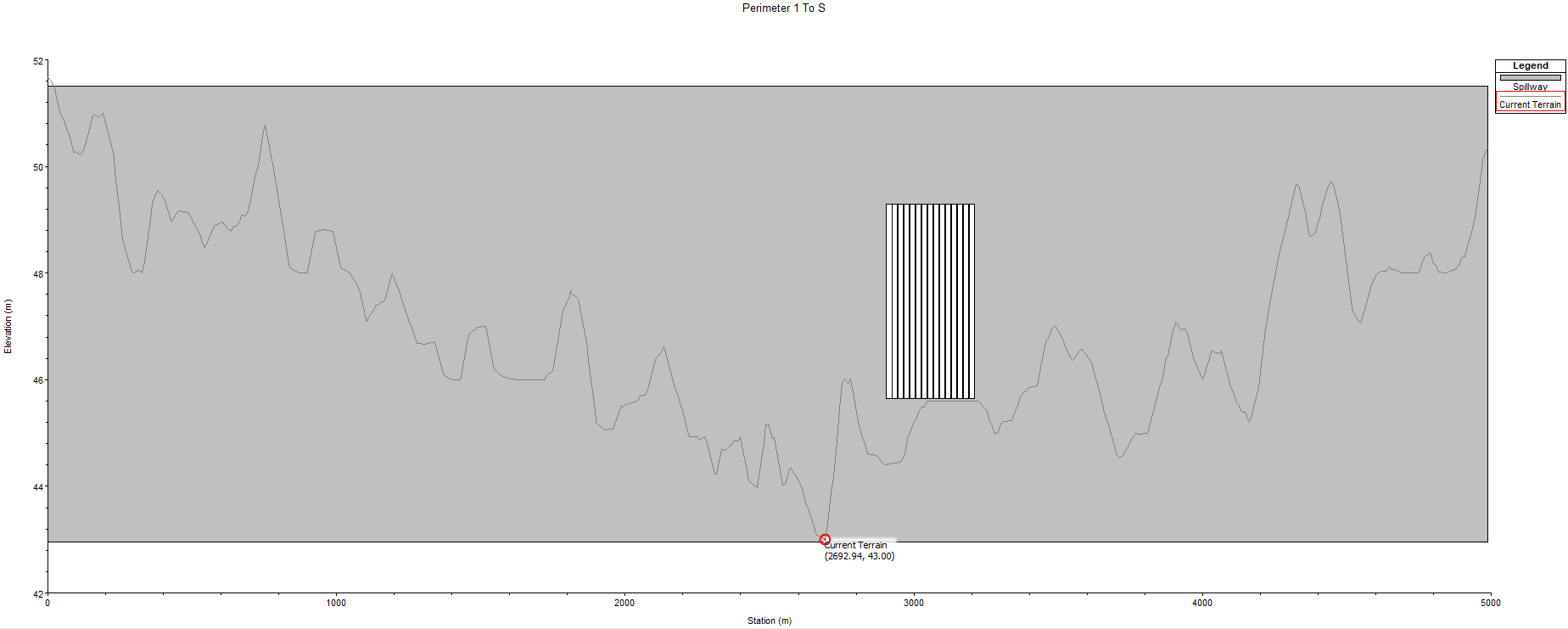

breach location (supplier): _infofiles/Utavali-G__breach_location.png
mesh: —
infofile: _infofiles/Utavali-G__infofile.csv
DEM correction: _infofiles/Utavali-G__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Utavali-G
PAR / exposure: _par/Utavali-G
EAP figures (exposure curve + warning scatter, log y): _figures/Utavali-G
atlases: Utavali-G__S_EG_00_REF__S01-FW-REF, Utavali-G__S_EG_00__S02-FW-PIP, Utavali-G__S_EG_01__S03-DF-REF, Utavali-G__S_EG_02__S04-DF-OT, Utavali-G__S_EG_05_SBL__S08-SO-L, Utavali-G__S_EG_05_SBR__S09-SO-H, Utavali-G__S_EG_06__S06-DF-OPS
