Sabli

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0628 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0628
District	Junagadh
Taluka	Vanthali
River	Sabli
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Rolled Fill Zone Type
FRL (m)	43.75
HFL (m)	43.75
Top of dam (m)	46.9
Spillway crest (m)	40.7
Gross storage (Mm³)	4.092
Catchment (km²)	67.93
Bed level, adopted (m)	33.2
Head, documented (m)	13.7
Head in DEM before correction (m)	5.88
Head after DEM correction (m)	13.7
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.47	8	1,257.58	1,675.56	2,510.50	29.01	`../Sabli/S_EG_00__S02-FW-PIP/`	`b6b1e4048664635a`	2026-09-27T15:24
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Sabli/S_EG_00_REF__S01-FW-REF/`	`bd126a11681f0b93`	2026-09-27T11:43
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	8	—	—	—	—	`../Sabli/S_EG_01__S03-DF-REF/`	`24d606881af96965`	2026-09-27T16:14
`S_EG_02`	`S04-DF-OT`	retained	clean	0.15	8	3,406.51	5,235.43	2,510.50	63.67	`../Sabli/S_EG_02__S04-DF-OT/`	`27e170a059ae836f`	2026-09-27T15:42
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.09	8	2,038.07	—	2,104.78	43.90	`../Sabli/S_EG_05_SBL__S08-SO-L/`	`3e2fb0f88db6d536`	2026-09-28T00:56
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.07	8	1,828.62	—	2,185.86	43.90	`../Sabli/S_EG_05_SBR__S09-SO-H/`	`c97549d3b96e9dbc`	2026-09-28T00:57
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.04	8	—	—	—	—	`../Sabli/S_EG_06__S06-DF-OPS/`	`e2f80d7282996ad6`	2026-09-27T17:22

Assets

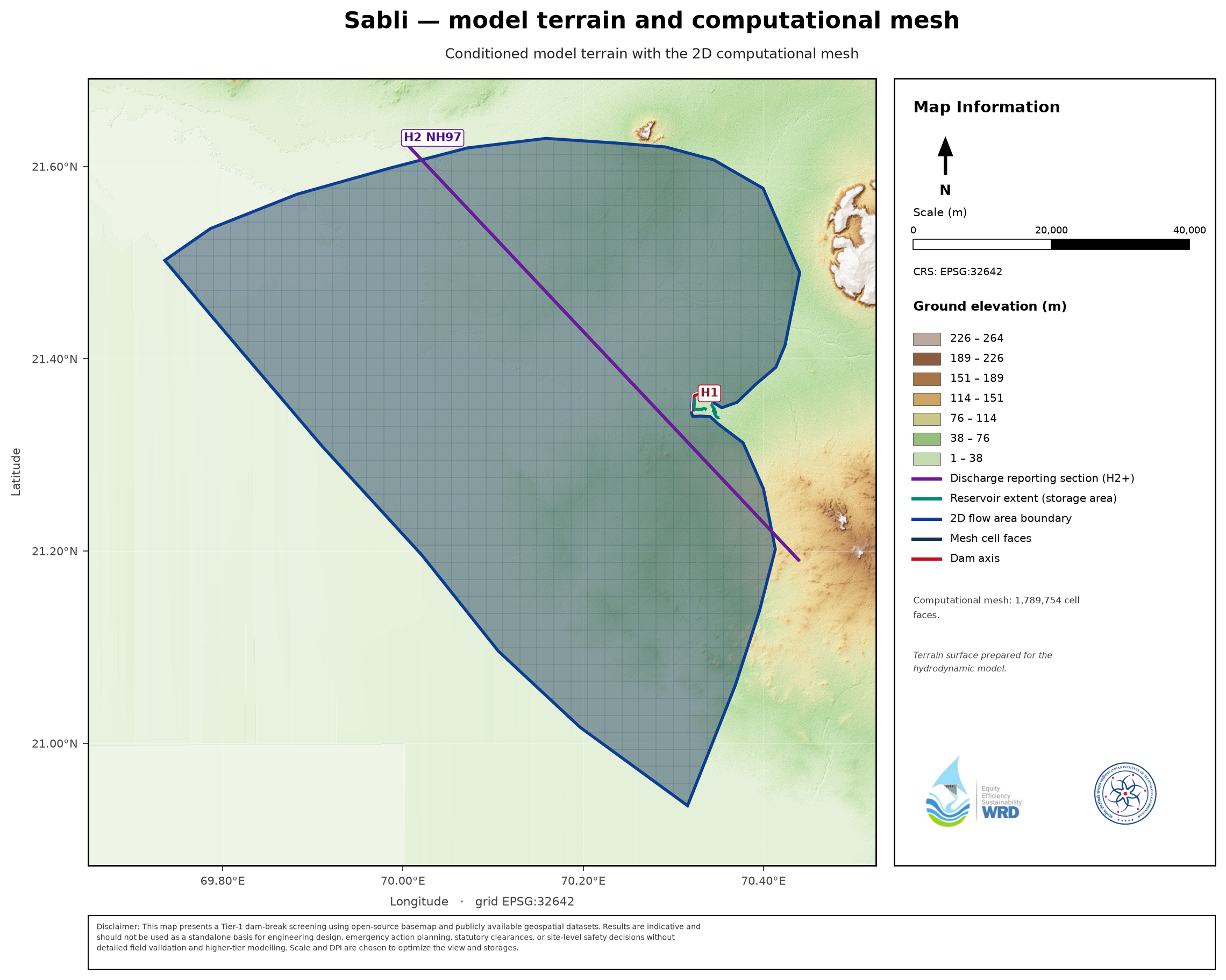

terrain plate (Fig 3.1): _maps/Sabli__dem.png

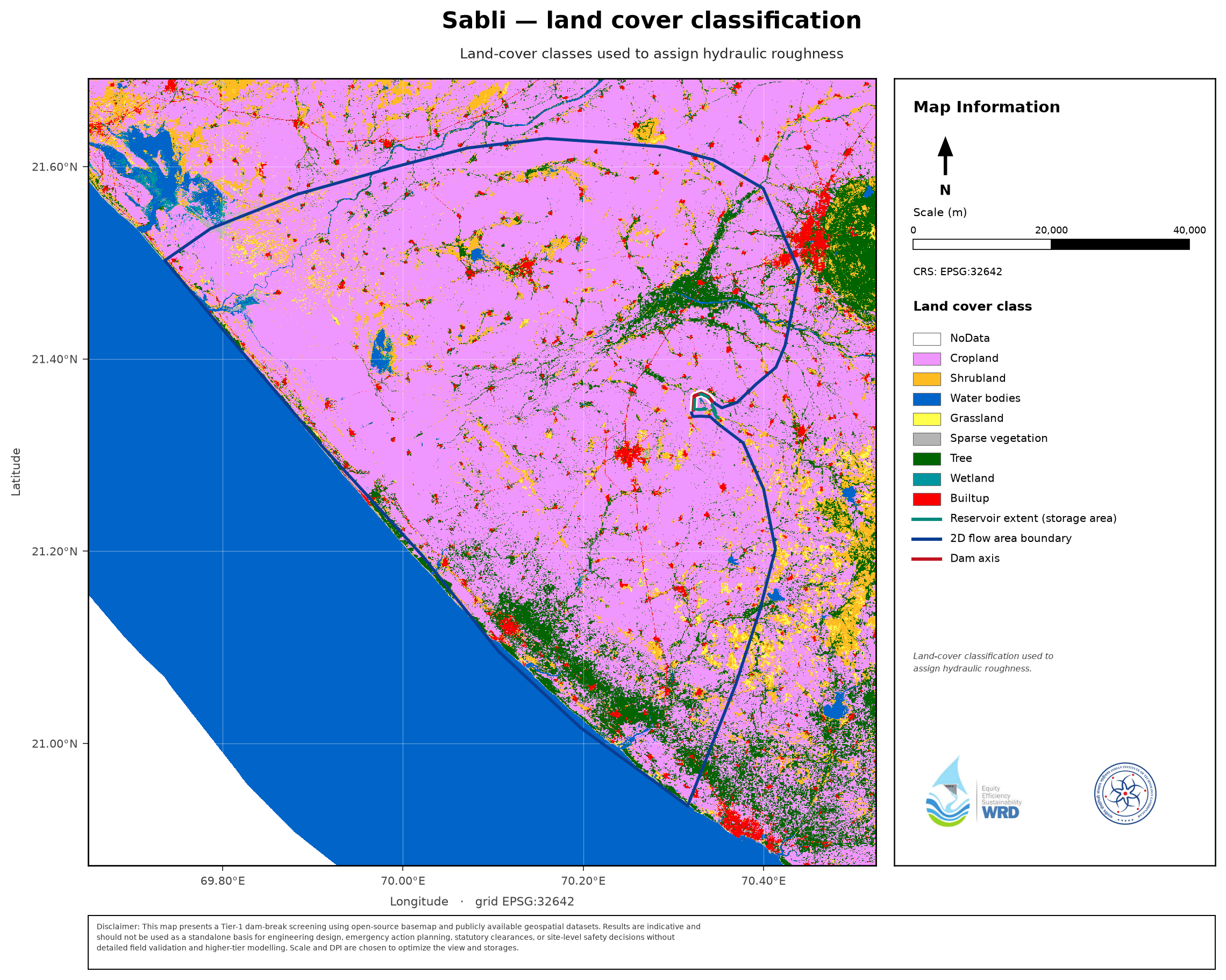

land-cover plate (Fig 3.2): _maps/Sabli__lulc.png
storage curve: _storage_curves/Sabli__storage_elevation.csv
inflow flood hydrograph: _infofiles/Sabli__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Sabli__inflow_baseflow_hydrograph.csv

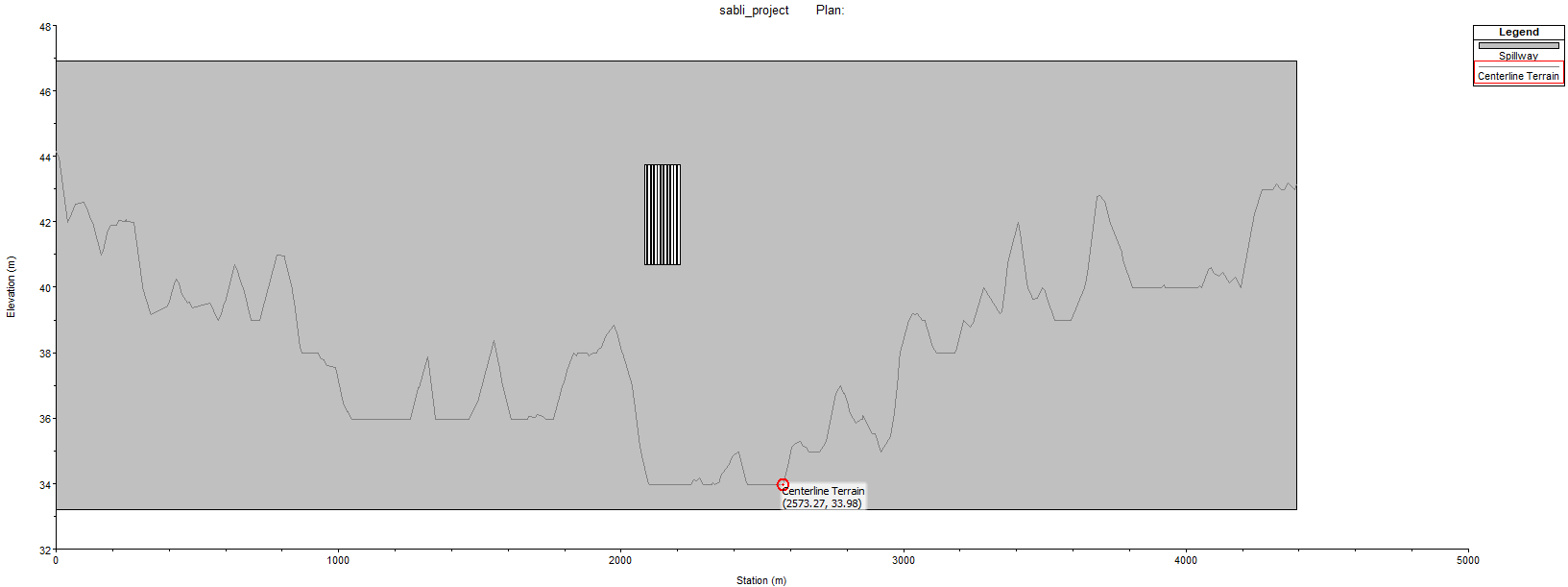

breach location (supplier): _infofiles/Sabli__breach_location.png

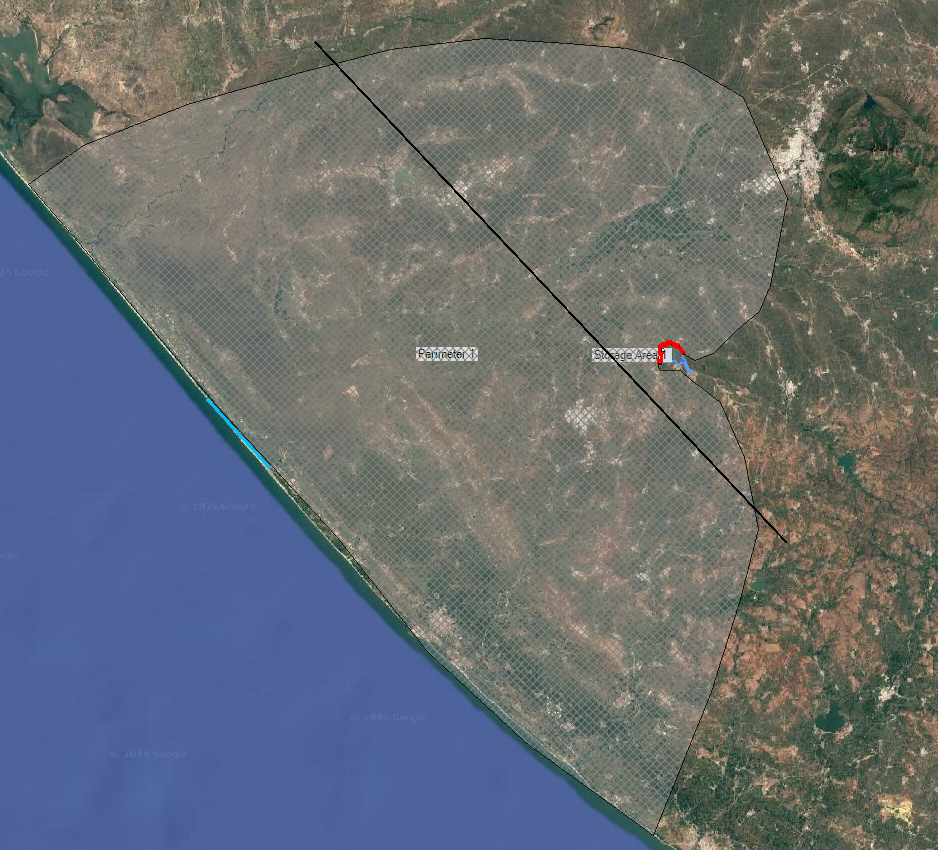

mesh: _infofiles/Sabli__mesh.png
infofile: _infofiles/Sabli__infofile.csv
DEM correction: _infofiles/Sabli__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Sabli
PAR / exposure: _par/Sabli
EAP figures (exposure curve + warning scatter, log y): _figures/Sabli
atlases: Sabli__S_EG_00_REF__S01-FW-REF, Sabli__S_EG_00__S02-FW-PIP, Sabli__S_EG_01__S03-DF-REF, Sabli__S_EG_02__S04-DF-OT, Sabli__S_EG_05_SBL__S08-SO-L, Sabli__S_EG_05_SBR__S09-SO-H, Sabli__S_EG_06__S06-DF-OPS
