Rupavati

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04LH0572 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04LH0572
District	Jamnagar
Taluka	Lalpur
River	Rupavati
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Rolled filled zone type
FRL (m)	77.3
HFL (m)	78.8
Top of dam (m)	80.3
Spillway crest (m)	77.3
Gross storage (Mm³)	2.19
Catchment (km²)	38.46
Bed level, adopted (m)	68.8
Head, documented (m)	11.5
Head in DEM before correction (m)	5.828
Head after DEM correction (m)	11.5
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.22	8	817.30	903.21	1,226.00	22.97	`../Rupavati/S_EG_00__S02-FW-PIP/`	`7339f4a43b0d8dda`	2026-08-27T07:07
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Rupavati/S_EG_00_REF__S01-FW-REF/`	`8a7e4e149491d535`	2026-08-27T07:01
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	8	—	—	—	—	`../Rupavati/S_EG_01__S03-DF-REF/`	`01614d493b5cd284`	2026-08-27T07:04
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.06	8	1,251.26	1,403.65	1,226.00	27.74	`../Rupavati/S_EG_03__S05-DF-PIP/`	`08e1c186143688ea`	2026-08-27T07:10
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.01	8	1,761.67	—	939.00	60.00	`../Rupavati/S_EG_05_SBL__S08-SO-L/`	`0a5a33e30f051dba`	2026-08-27T07:13
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.01	8	1,772.55	—	1,043.00	60.00	`../Rupavati/S_EG_05_SBR__S09-SO-H/`	`4faa35954bdc262e`	2026-08-27T07:17

Assets

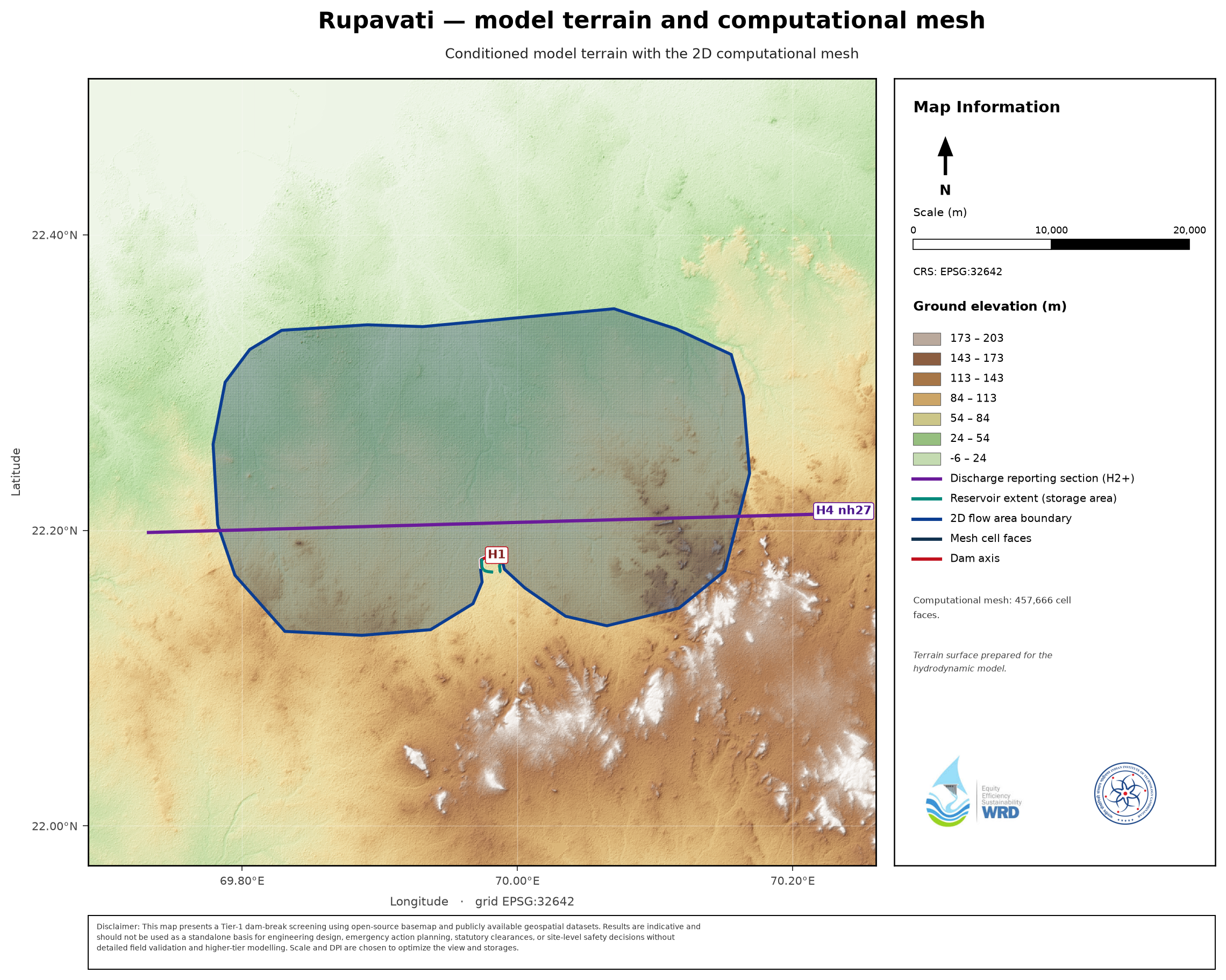

terrain plate (Fig 3.1): _maps/Rupavati__dem.png

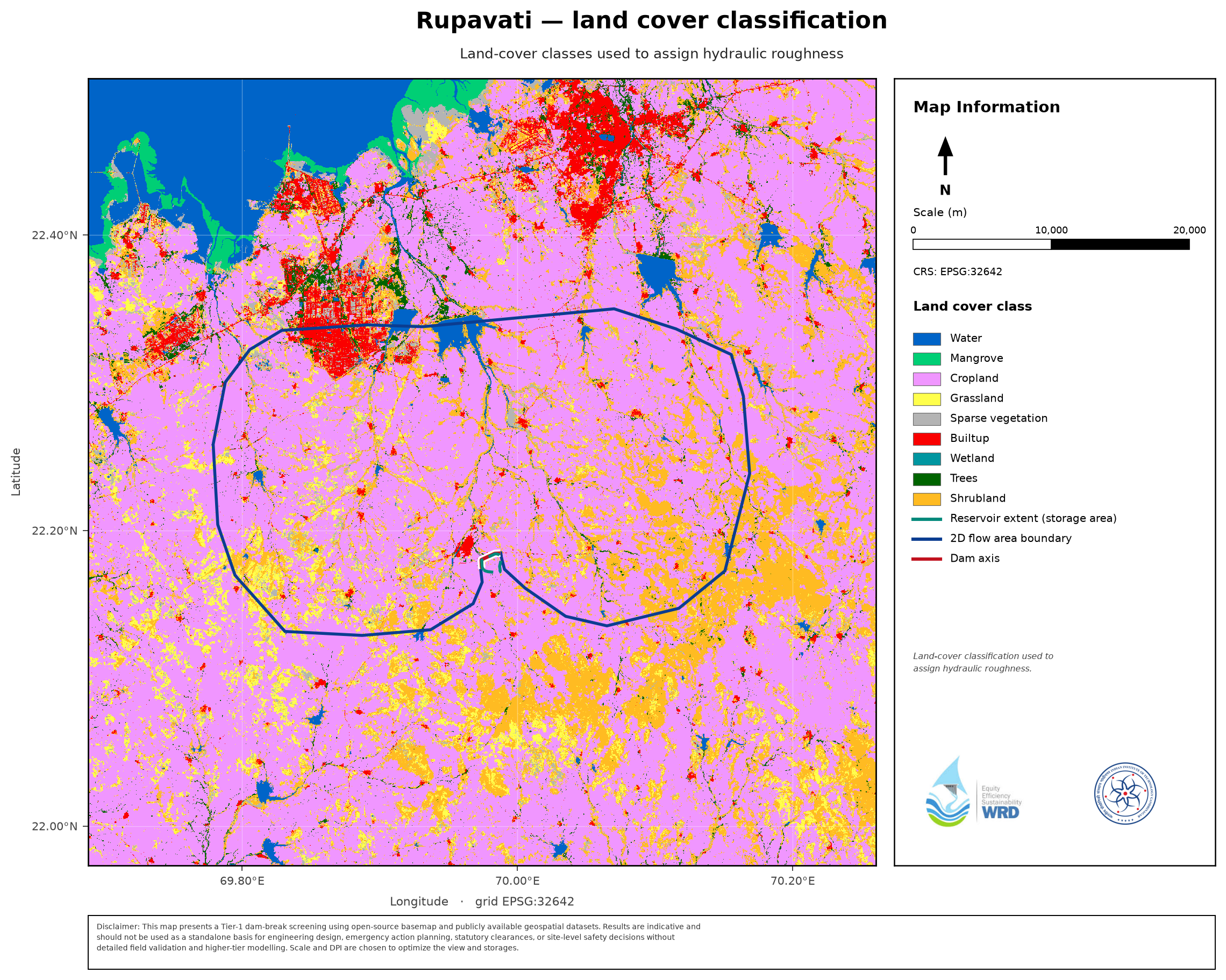

land-cover plate (Fig 3.2): _maps/Rupavati__lulc.png
storage curve: _storage_curves/Rupavati__storage_elevation.csv
inflow flood hydrograph: _infofiles/Rupavati__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Rupavati__inflow_baseflow_hydrograph.csv

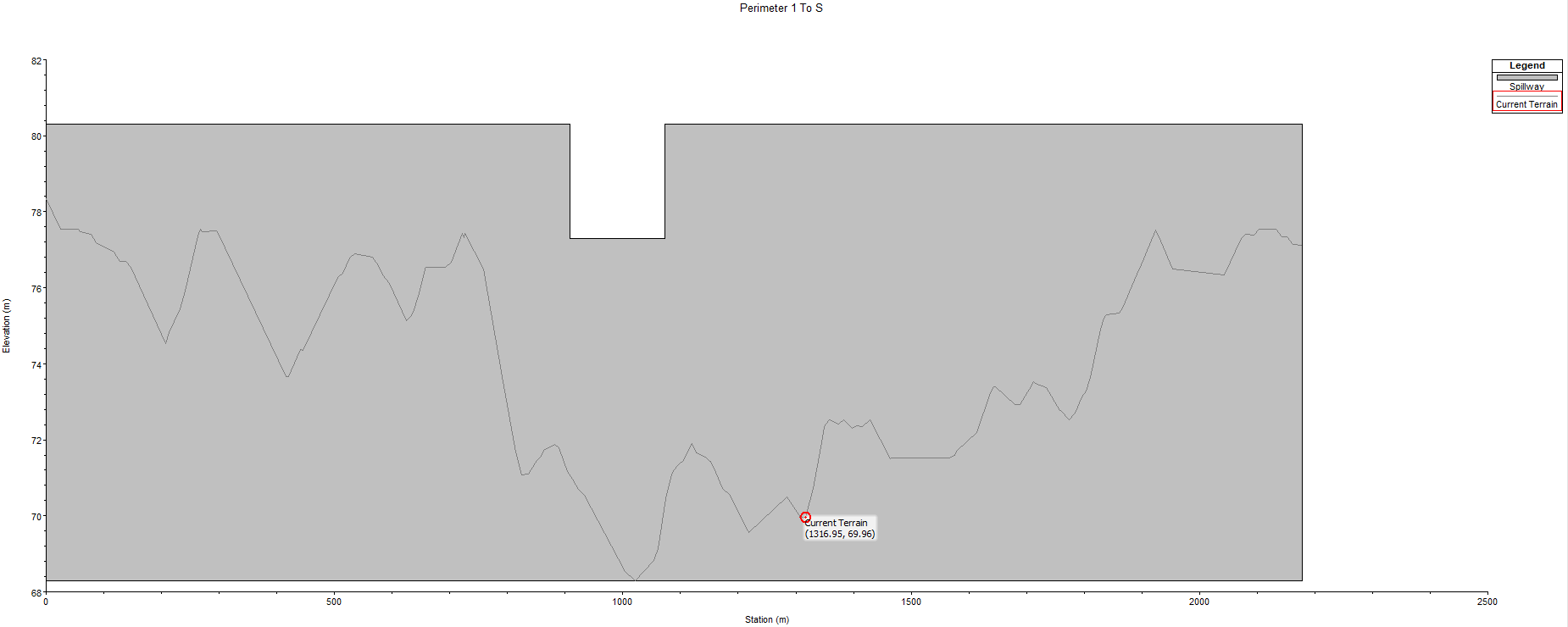

breach location (supplier): _infofiles/Rupavati__breach_location.png

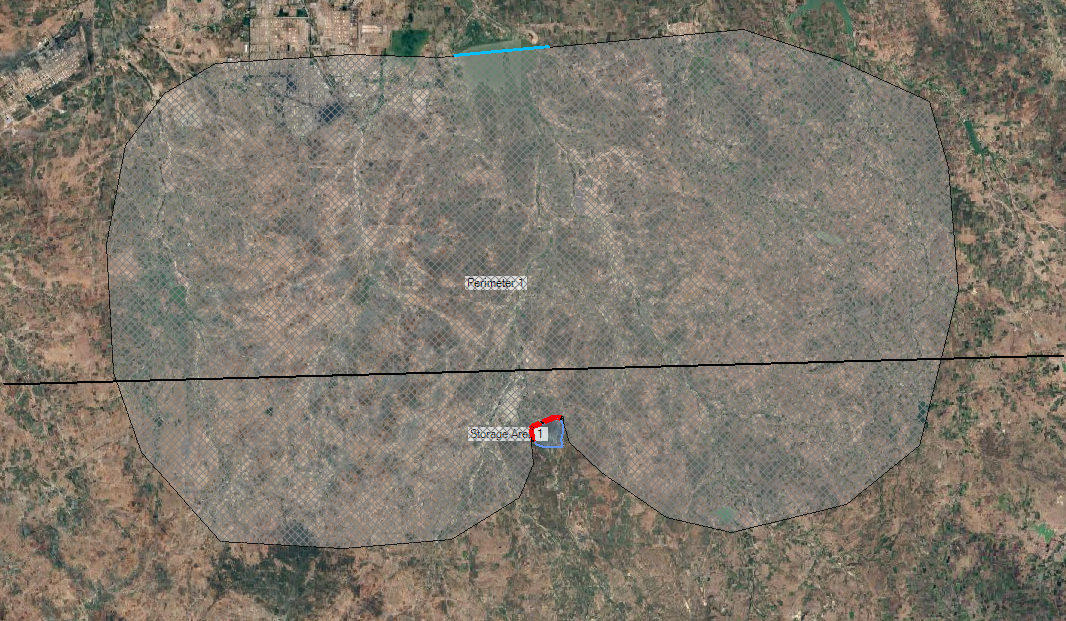

mesh: _infofiles/Rupavati__mesh.png
infofile: _infofiles/Rupavati__infofile.csv
DEM correction: _infofiles/Rupavati__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Rupavati
PAR / exposure: _par/Rupavati
EAP figures (exposure curve + warning scatter, log y): _figures/Rupavati
atlases: Rupavati__S_EG_00_REF__S01-FW-REF, Rupavati__S_EG_00__S02-FW-PIP, Rupavati__S_EG_01__S03-DF-REF, Rupavati__S_EG_03__S05-DF-PIP, Rupavati__S_EG_05_SBL__S08-SO-L, Rupavati__S_EG_05_SBR__S09-SO-H
