Malpara

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208LH0755 · CRS EPSG:32642

7current scenarios

7renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208LH0755
District	Botad
Taluka	Gadhada
River	Sitapari
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen
FRL (m)	78.1
HFL (m)	78.1
Top of dam (m)	81.1
Spillway crest (m)	72.0
Design spillway capacity (m³/s)	75856.62
Gross storage (Mm³)	6.9
Catchment (km²)	112.64
Bed level, adopted (m)	70.0
Head, documented (m)	11.1
Head in DEM before correction (m)	7.218
Head after DEM correction (m)	11.1
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.17	7	1,150.68	1,541.97	1,342.26	38.69	`../Malpara/S_EG_00__S02-FW-PIP/`	`26c8488d1abc1ef5`	2026-09-30T09:08
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Malpara/S_EG_00_REF__S01-FW-REF/`	`99823373b7d381c8`	2026-10-01T16:40
`S_EG_01`	`S03-DF-REF`	retained	clean	0.00	7	—	—	—	—	`../Malpara/S_EG_01__S03-DF-REF/`	`29ff8a6d8aaa5663`	2026-10-01T16:41
`S_EG_02`	`S04-DF-OT`	reran · accepted	clean	0.05	7	2,926.26	4,461.65	1,342.26	74.97	`../Malpara/S_EG_02__S04-DF-OT/`	`b9a2f59fbdfa7117`	2026-10-02T17:39
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.02	7	2,107.60	—	1,113.69	43.92	`../Malpara/S_EG_05_SBL__S08-SO-L/`	`7b23e8206a39b4b3`	2026-10-03T08:16
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.02	7	2,107.60	—	1,160.05	43.92	`../Malpara/S_EG_05_SBR__S09-SO-H/`	`4458a06029001e5d`	2026-10-03T08:18
`S_EG_06`	`S06-DF-OPS`	retained	clean	0.03	7	—	—	—	—	`../Malpara/S_EG_06__S06-DF-OPS/`	`69976d0461dc2f08`	2026-10-01T16:41

Assets

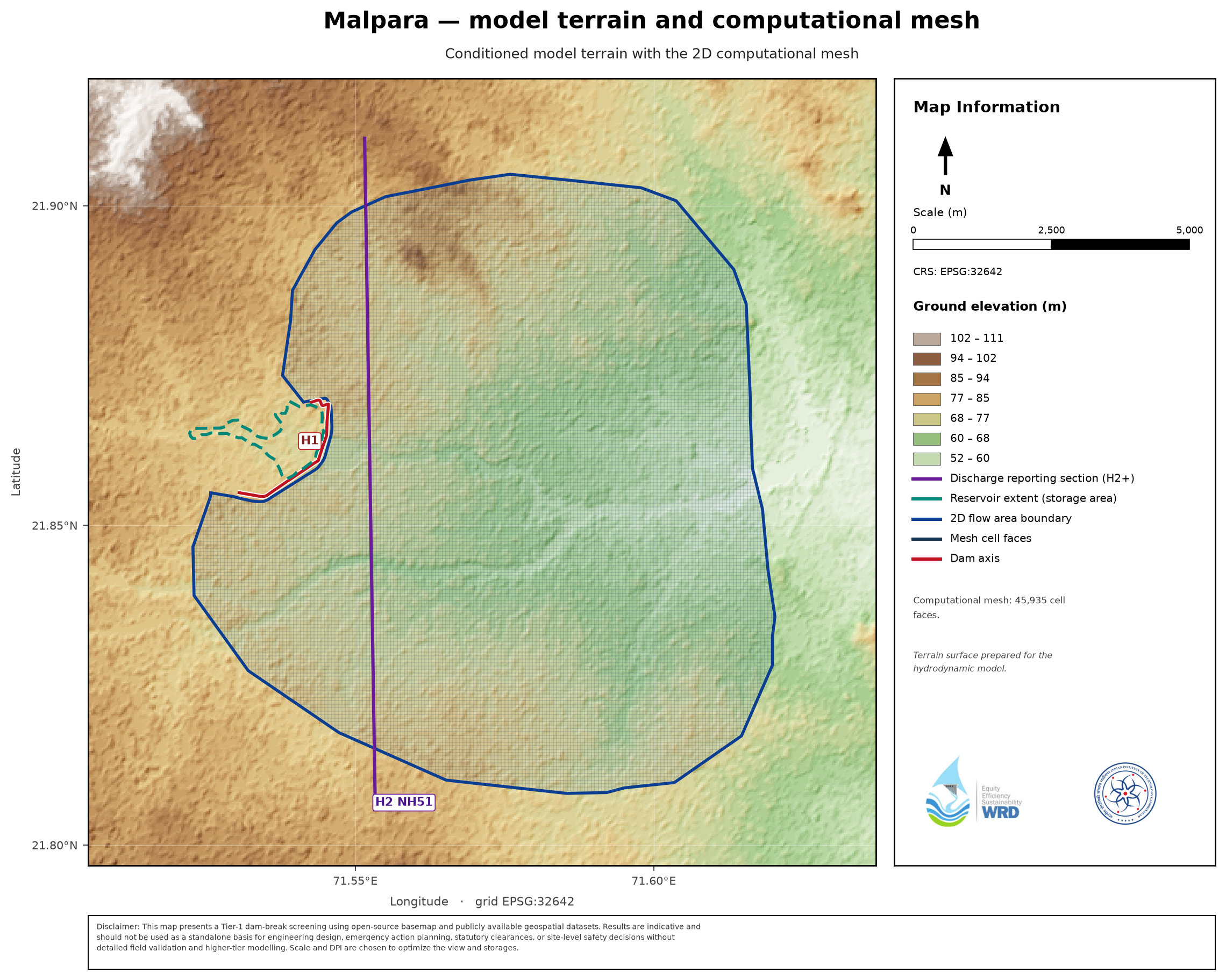

terrain plate (Fig 3.1): _maps/Malpara__dem.png

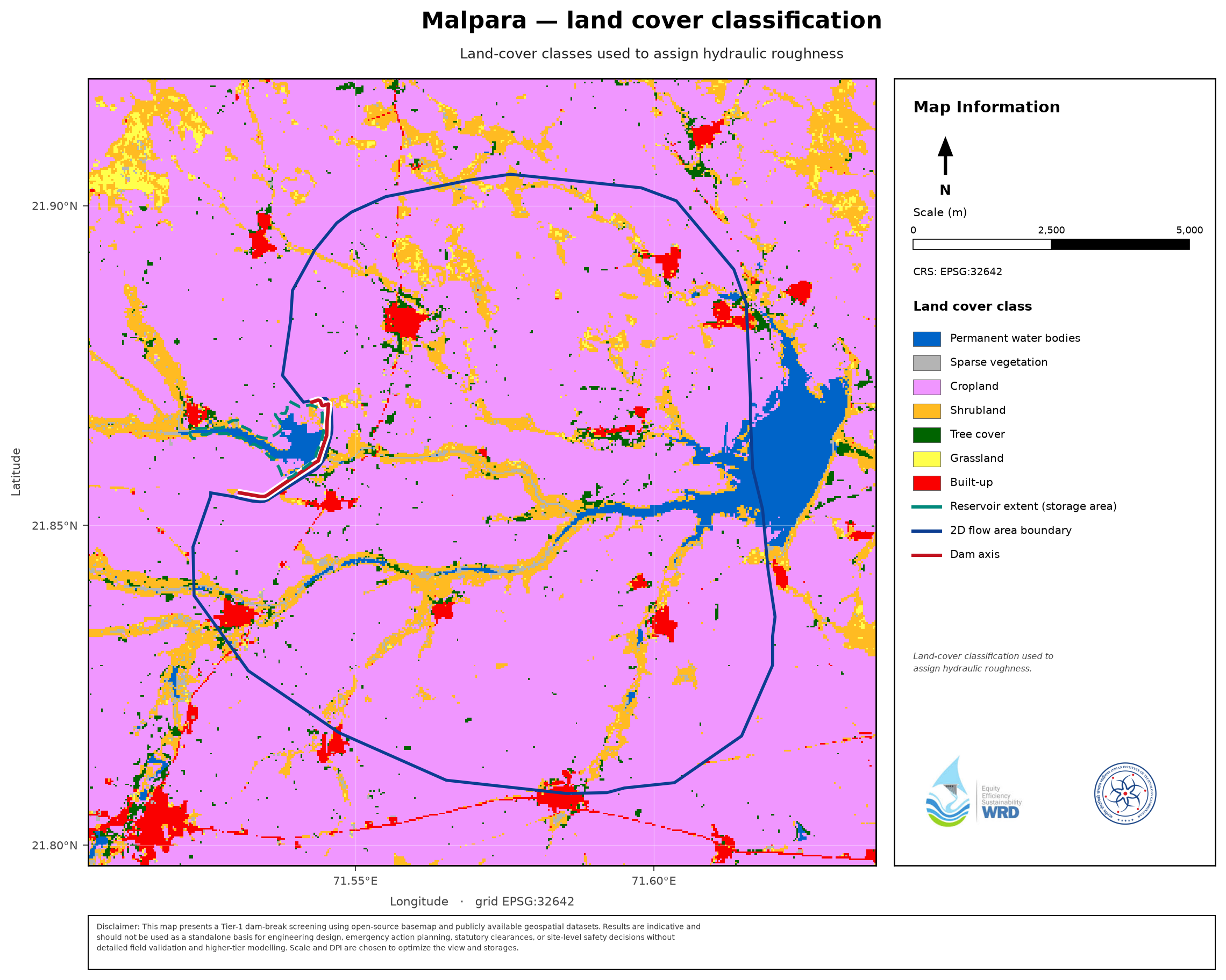

land-cover plate (Fig 3.2): _maps/Malpara__lulc.png
storage curve: _storage_curves/Malpara__storage_elevation.csv
inflow flood hydrograph: _infofiles/Malpara__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Malpara__inflow_baseflow_hydrograph.csv

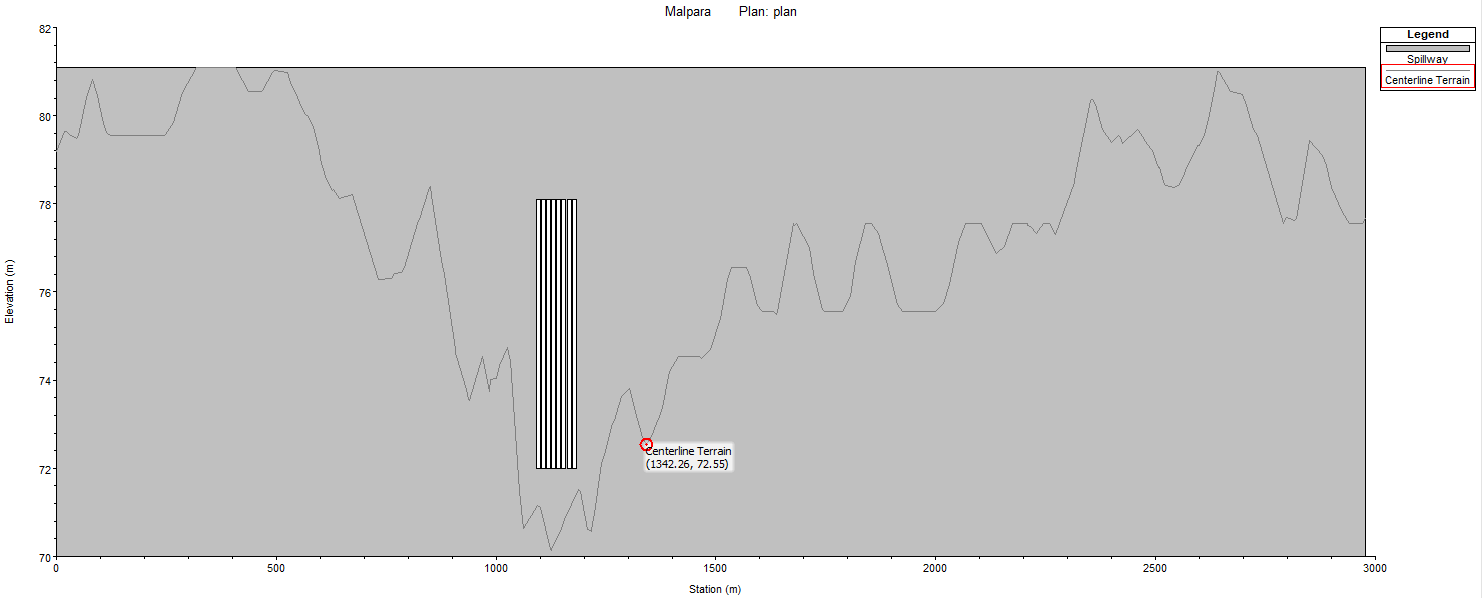

breach location (supplier): _infofiles/Malpara__breach_location.png

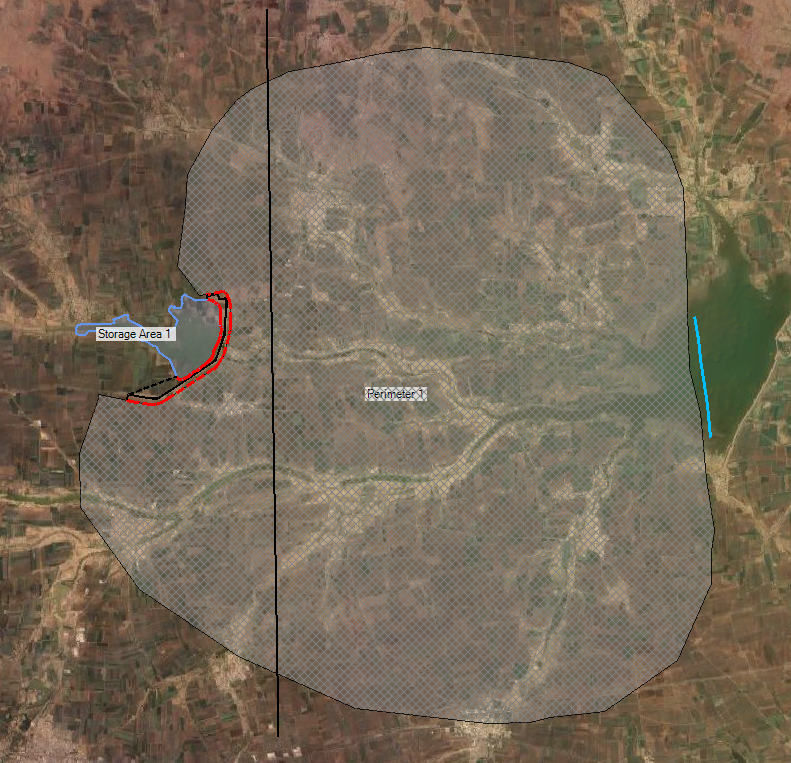

mesh: _infofiles/Malpara__mesh.png
infofile: _infofiles/Malpara__infofile.csv
DEM correction: _infofiles/Malpara__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Malpara
PAR / exposure: _par/Malpara
EAP figures (exposure curve + warning scatter, log y): _figures/Malpara
atlases: Malpara__S_EG_00_REF__S01-FW-REF, Malpara__S_EG_00__S02-FW-PIP, Malpara__S_EG_01__S03-DF-REF, Malpara__S_EG_02__S04-DF-OT, Malpara__S_EG_05_SBL__S08-SO-L, Malpara__S_EG_05_SBR__S09-SO-H, Malpara__S_EG_06__S06-DF-OPS
