Jaspara-Mandava

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0768 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T03:41:51+00:00
report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Delivered. Its maps are now drawn to one page layout per scenario, so the five faces of a flood can be compared side by side, and every map is taken from the master store.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0768
District	Bhavnagar
Taluka	Talaja
River	JASPARI
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Earthen
FRL (m)	40.25
HFL (m)	42.25
Top of dam (m)	43.75
Spillway crest (m)	40.25
Design spillway capacity (m³/s)	841.29
Gross storage (Mm³)	3.714
Catchment (km²)	42.85
Bed level, adopted (m)	21.35
Head, documented (m)	22.4
Head in DEM before correction (m)	28.35
Head after DEM correction (m)	22.4
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.02	8	3,623.48	2,660.10	850.41	26.49	`../Jaspara-Mandava/S_EG_00__S02-FW-PIP/`	`4c77c015617d2ee5`	2026-08-16T12:10
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Jaspara-Mandava/S_EG_00_REF__S01-FW-REF/`	`607f4cf581b6a4cb`	2026-08-09T18:02
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	8	—	—	—	—	`../Jaspara-Mandava/S_EG_01__S03-DF-REF/`	`2ef1d0250efb2bf5`	2026-08-09T18:02
`S_EG_03`	`S05-DF-PIP`	reran · accepted	clean	0.03	8	1,955.10	4,407.48	850.41	37.32	`../Jaspara-Mandava/S_EG_03__S05-DF-PIP/`	`6a161870de2d5910`	2026-08-15T14:10
`S_EG_05_SBL`	`S08-SO-L`	retained	elevated	2.10	8	1,065.31	—	1,086.78	60.00	`../Jaspara-Mandava/S_EG_05_SBL__S08-SO-L/`	`0b67f67ad57e9206`	2026-08-09T18:02
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.26	8	928.99	—	1,168.78	60.00	`../Jaspara-Mandava/S_EG_05_SBR__S09-SO-H/`	`0bfbcefba8aade32`	2026-08-09T18:02

Assets

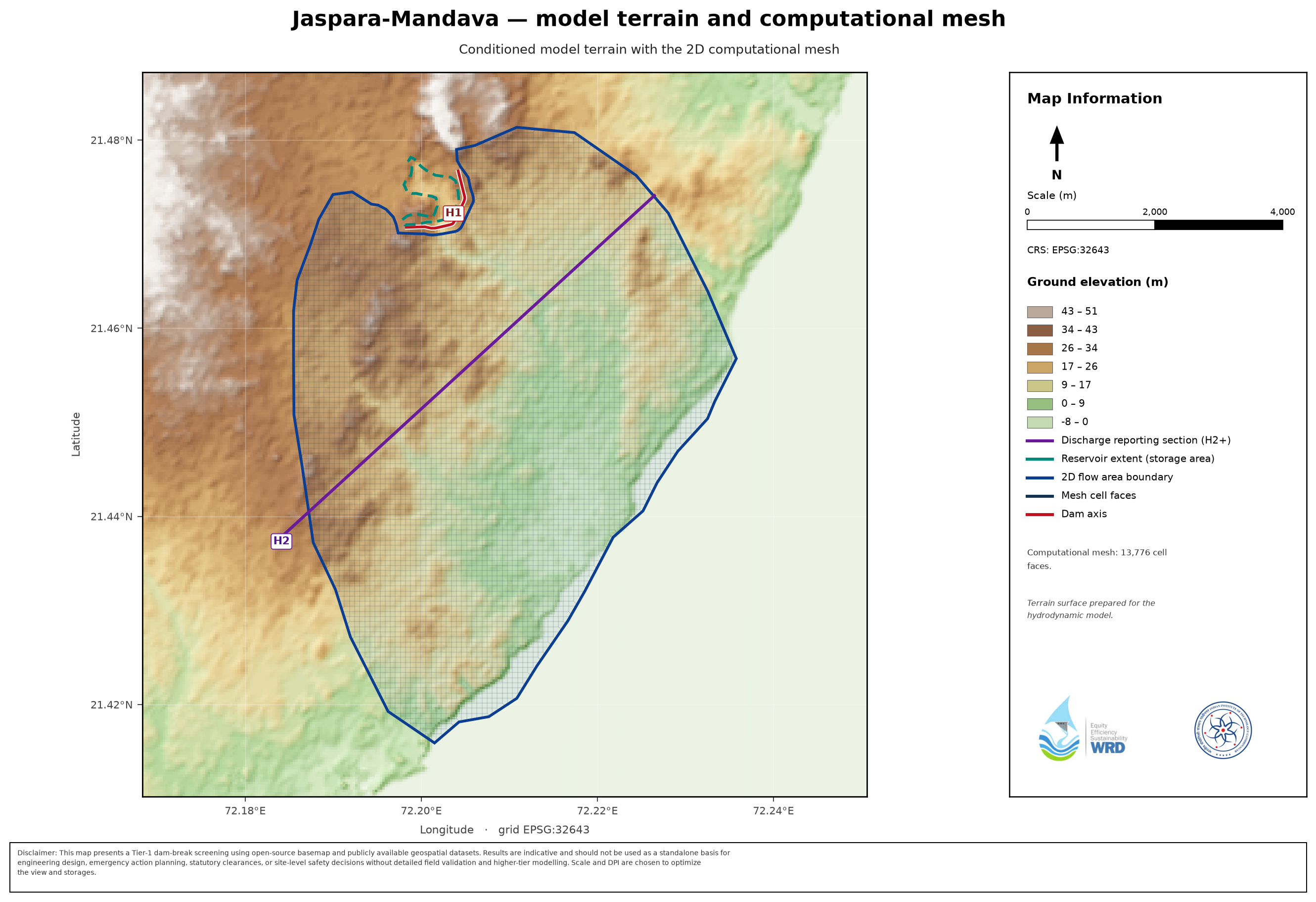

terrain plate (Fig 3.1): _maps/Jaspara-Mandava__dem.png

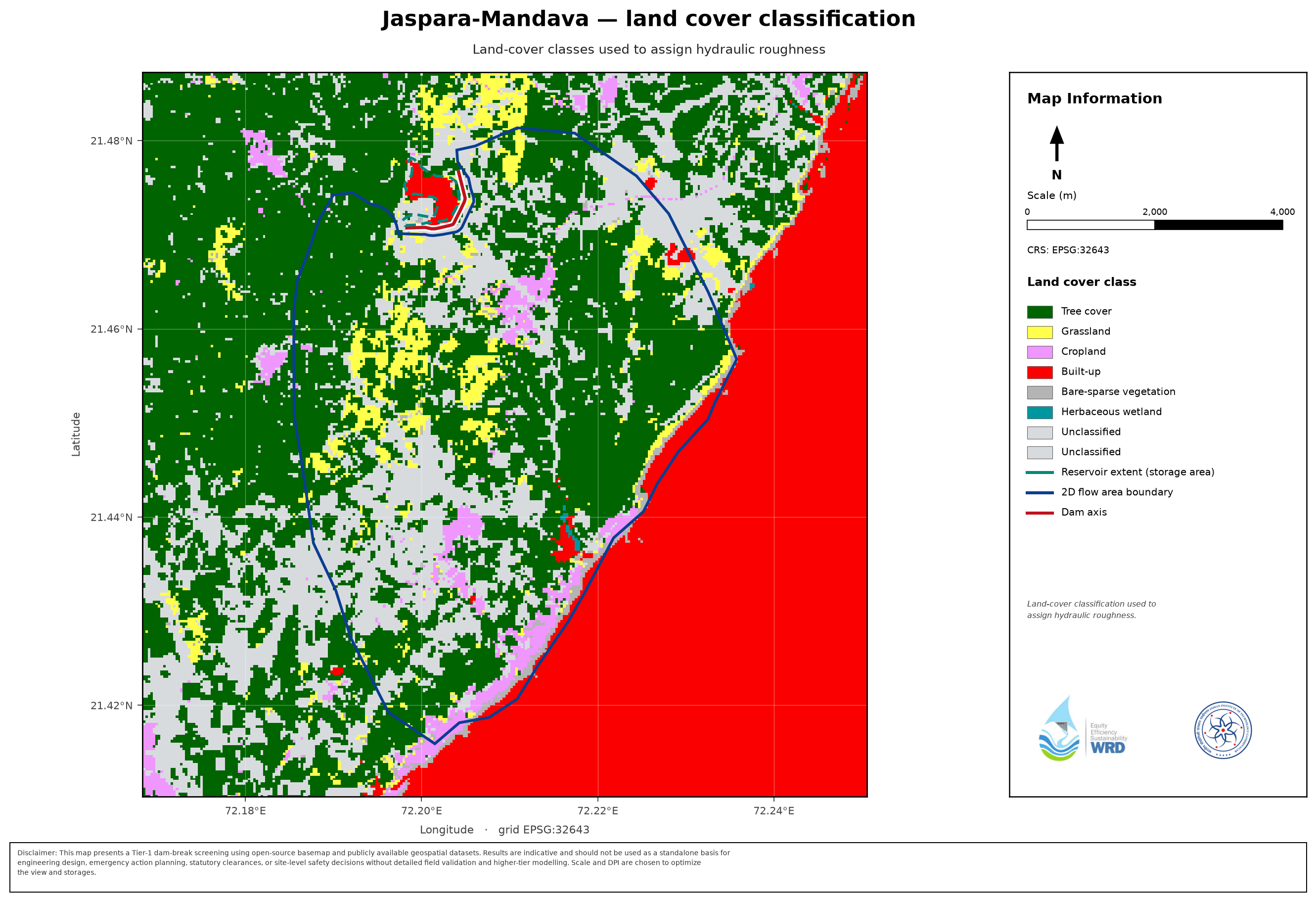

land-cover plate (Fig 3.2): _maps/Jaspara-Mandava__lulc.png
storage curve: _storage_curves/Jaspara-Mandava__storage_elevation.csv
inflow flood hydrograph: _infofiles/Jaspara-Mandava__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Jaspara-Mandava__inflow_baseflow_hydrograph.csv

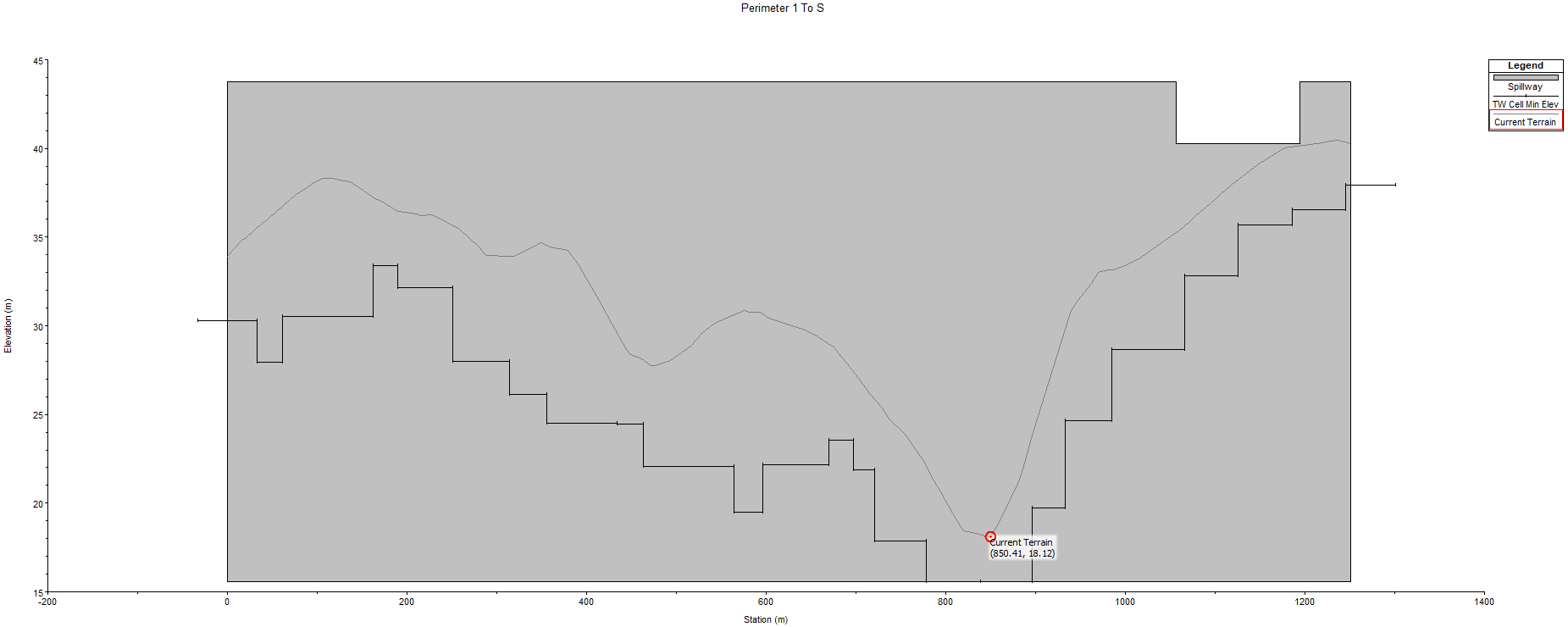

breach location (supplier): _infofiles/Jaspara-Mandava__breach_location.png

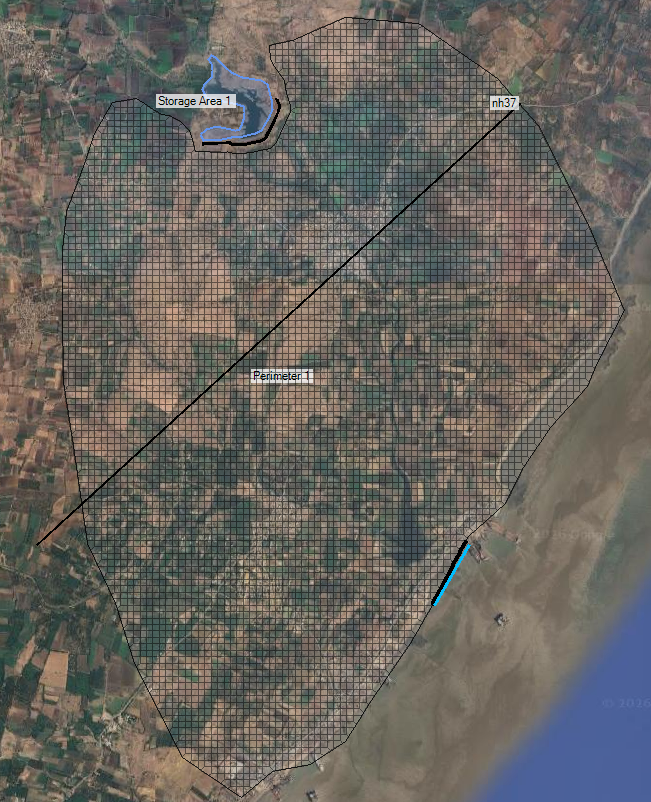

mesh: _infofiles/Jaspara-Mandava__mesh.png
infofile: _infofiles/Jaspara-Mandava__infofile.csv
DEM correction: _infofiles/Jaspara-Mandava__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Jaspara-Mandava
PAR / exposure: _par/Jaspara-Mandava
EAP figures (exposure curve + warning scatter, log y): _figures/Jaspara-Mandava
atlases: Jaspara-Mandava__S_EG_00_REF__S01-FW-REF, Jaspara-Mandava__S_EG_00__S02-FW-PIP, Jaspara-Mandava__S_EG_01__S03-DF-REF, Jaspara-Mandava__S_EG_03__S05-DF-PIP, Jaspara-Mandava__S_EG_05_SBL__S08-SO-L, Jaspara-Mandava__S_EG_05_SBR__S09-SO-H

Defect ledger

run id	status	replacement sha	old sha (do not use)
`S_EG_00`	DEFECT FIXED	`4c77c015617d2ee5`	`b255111b0a80d038`
