Hanol

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208HH0744 · CRS EPSG:32642

7current scenarios

7renderable

0running again

1retired · not in master

Report thread · updated 2026-08-17T05:11:34+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (SEVEN_TAIL_DISCLOSURE_ACCEPTED_CANDIDATE_PENDING_DELIVERY; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Rebuilt 17 Aug with the spillway wording and units correction; audit clean.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208HH0744
District	Bhavnagar
Taluka	Palitana
River	RAJAWAL
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Zoned earth fill
FRL (m)	90.1
HFL (m)	90.1
Top of dam (m)	93.1
Spillway crest (m)	87.05
Design spillway capacity (m³/s)	1297.0
Gross storage (Mm³)	5.5996
Catchment (km²)	65.76
Bed level, adopted (m)	83.5
Head, documented (m)	9.6
Head in DEM before correction (m)	5.7
Head after DEM correction (m)	9.6
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S01`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Hanol/S01__S01-FW-REF/`	`f918111c9989b9e3`	2026-08-07T18:18
`S02`	`S02-FW-PIP`	retained	clean	0.19	7	72.42	630.55	1,556.07	36.14	`../Hanol/S02__S02-FW-PIP/`	`42f2872e36a808e1`	2026-09-30T17:07
`S03`	`S03-DF-REF`	retained	clean	0.04	7	—	—	—	—	`../Hanol/S03__S03-DF-REF/`	`ac17ca2da1a2923c`	2026-08-07T18:18
`S04`	`S04-DF-OT`	retained	clean	0.17	7	1,031.52	2,981.11	1,556.07	79.93	`../Hanol/S04__S04-DF-OT/`	`d519c5a7bdc13425`	2026-08-07T18:18
`S05`	`S06-DF-OPS`	retained	clean	0.05	7	—	—	—	—	`../Hanol/S05__S06-DF-OPS/`	`34c1a9055d00e8e6`	2026-08-07T18:18
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.06	7	921.70	—	2,693.29	43.92	`../Hanol/S_EG_05_SBL__S08-SO-L/`	`96f16b290eb6a08f`	2026-08-13T02:27
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.62	7	863.10	—	2,797.59	43.92	`../Hanol/S_EG_05_SBR__S09-SO-H/`	`38f43f11e242f012`	2026-08-13T02:27

Assets

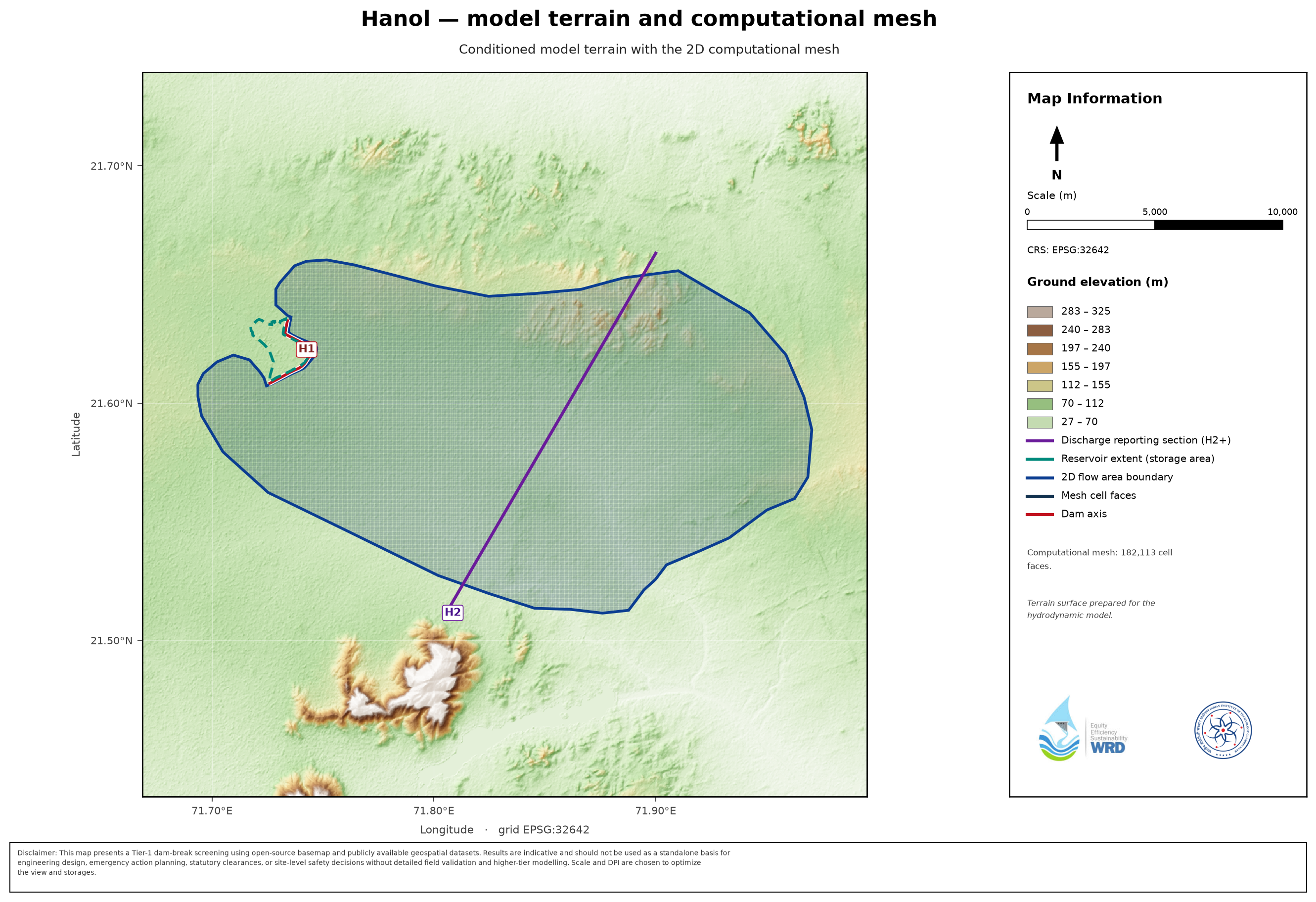

terrain plate (Fig 3.1): _maps/Hanol__dem.png

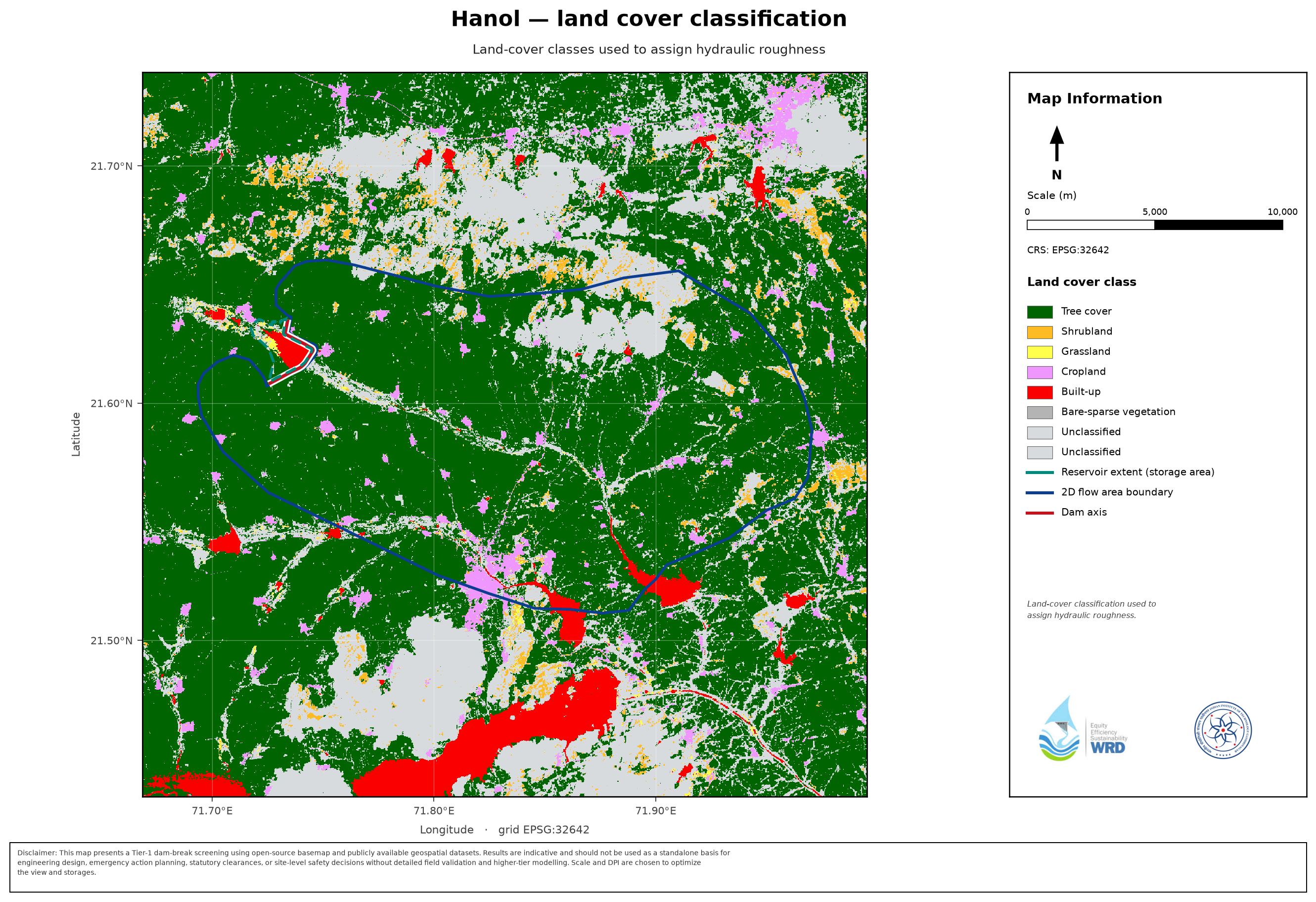

land-cover plate (Fig 3.2): _maps/Hanol__lulc.png
storage curve: _storage_curves/Hanol__storage_elevation.csv
inflow flood hydrograph: _infofiles/Hanol__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Hanol__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Hanol__breach_location.png

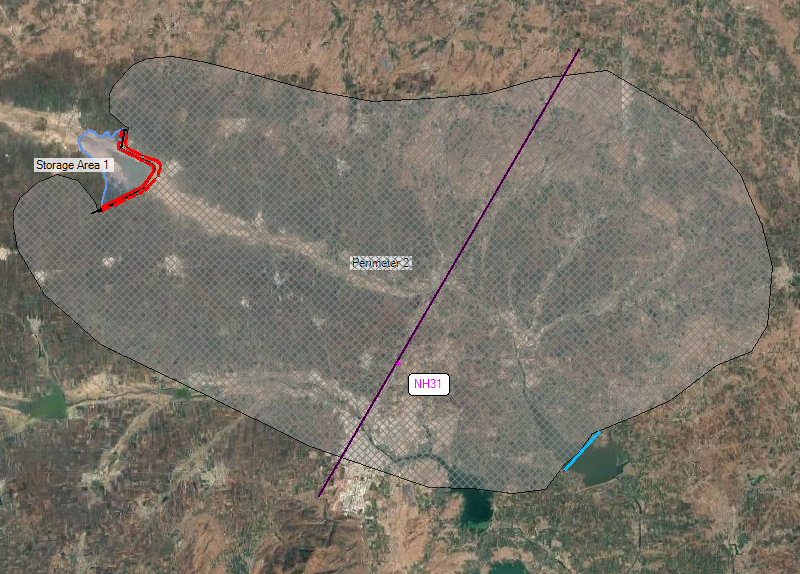

mesh: _infofiles/Hanol__mesh.png
infofile: _infofiles/Hanol__infofile.csv
DEM correction: _infofiles/Hanol__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Hanol
PAR / exposure: _par/Hanol
EAP figures (exposure curve + warning scatter, log y): _figures/Hanol
atlases: Hanol__S01__S01-FW-REF, Hanol__S02__S02-FW-PIP, Hanol__S03__S03-DF-REF, Hanol__S04__S04-DF-OT, Hanol__S05__S06-DF-OPS, Hanol__S_EG_05_SBL__S08-SO-L, Hanol__S_EG_05_SBR__S09-SO-H

Retired — not in the master

These artefacts are identified by sha so a stale copy elsewhere can be recognised; they do not exist in the master.

run id	state	sha256
`AS-01`	SUPERSEDED
