Ghelo-I

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0750 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:06:54+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Audited clean (0 findings) after the run side re-rendered S09-SO-H, which had been assembled from two different render passes.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0750
District	Amreli
Taluka	Babra,
River	Ghelo (Itariya)
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Composite
FRL (m)	166.72
HFL (m)	168.55
Top of dam (m)	170.38
Spillway crest (m)	166.72
Gross storage (Mm³)	10.752
Catchment (km²)	103.6
Bed level, adopted (m)	151.1
Head, documented (m)	19.28
Head in DEM before correction (m)	23.55
Head after DEM correction (m)	19.28
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.38	7	3,164.66	2,574.71	94.89	39.20	`../Ghelo-I/S_EG_00__S02-FW-PIP/`	`2afb605e3374df56`	2026-09-27T09:48
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Ghelo-I/S_EG_00_REF__S01-FW-REF/`	`29fb617e5d0518bb`	2026-09-27T09:45
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	7	—	—	—	—	`../Ghelo-I/S_EG_01__S03-DF-REF/`	`2e3c549e5d4177cf`	2026-09-27T09:50
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.11	7	5,824.09	4,727.68	94.89	54.11	`../Ghelo-I/S_EG_03__S05-DF-PIP/`	`b71c928a1525443a`	2026-10-02T18:57
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.06	7	4,926.56	—	437.80	60.00	`../Ghelo-I/S_EG_05_SBL__S08-SO-L/`	`4270203365dffe4d`	2026-09-26T21:50
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.07	7	4,850.76	—	591.16	60.00	`../Ghelo-I/S_EG_05_SBR__S09-SO-H/`	`9593e0c430099098`	2026-09-26T21:50

Assets

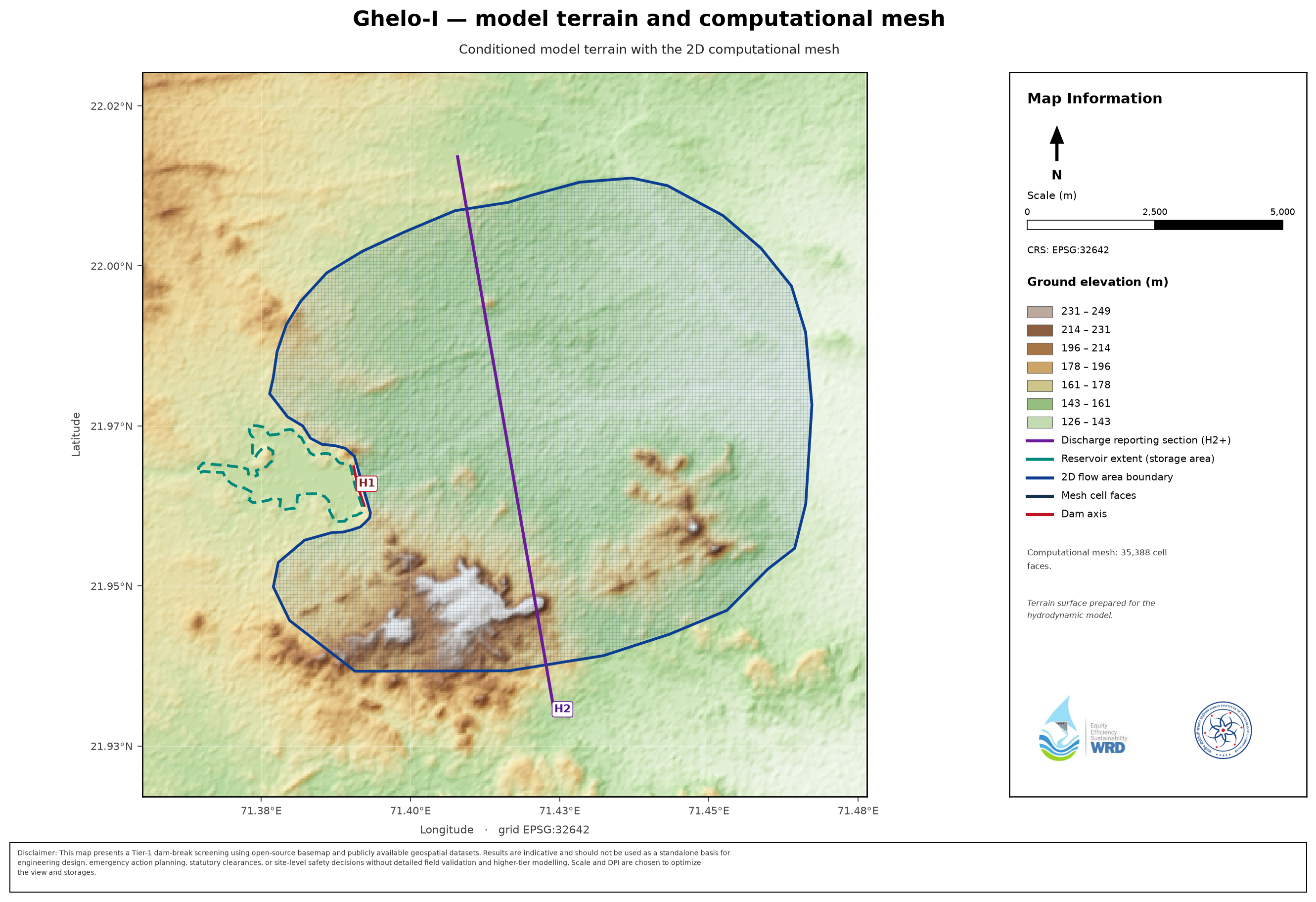

terrain plate (Fig 3.1): _maps/Ghelo-I__dem.png

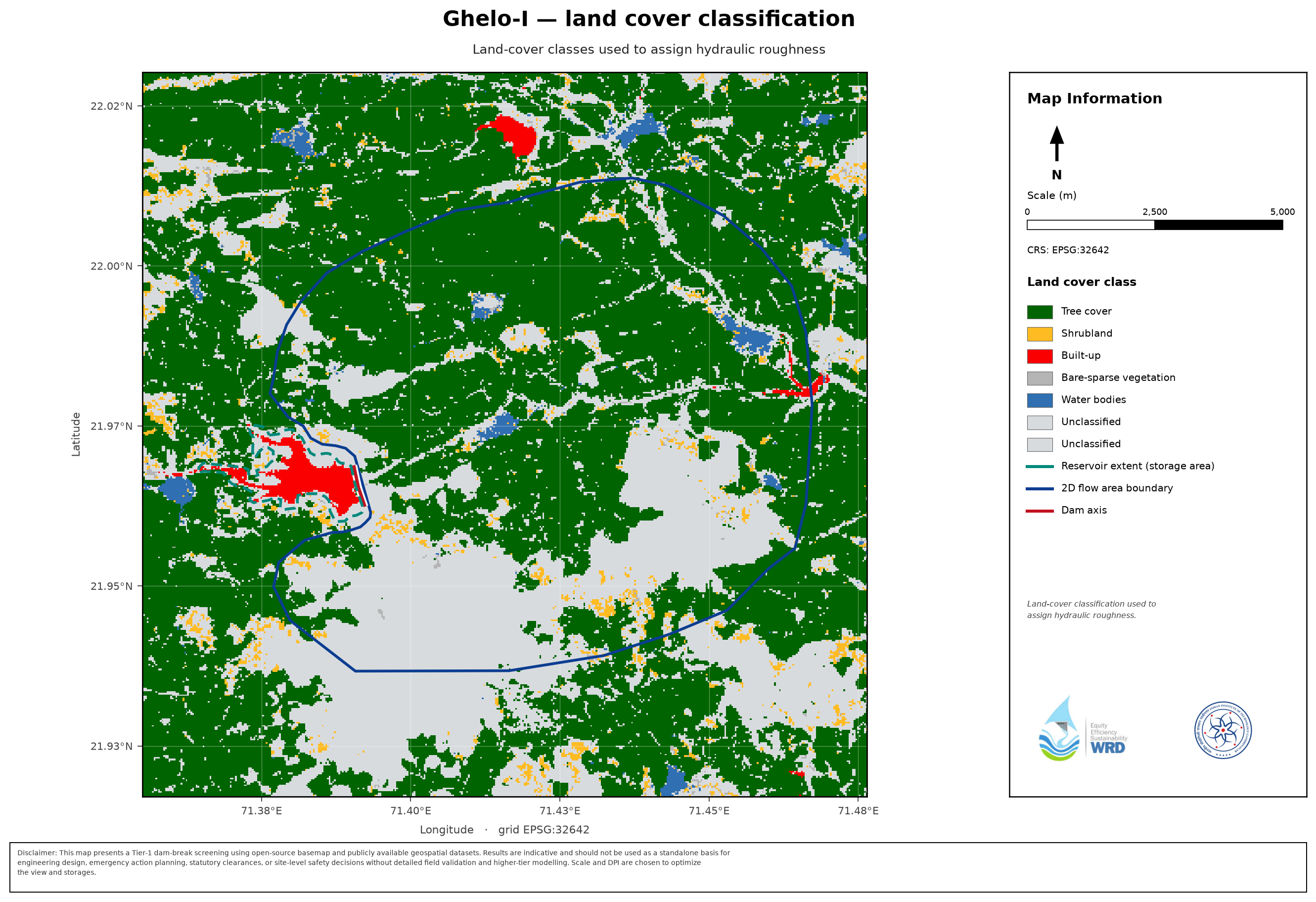

land-cover plate (Fig 3.2): _maps/Ghelo-I__lulc.png
storage curve: _storage_curves/Ghelo-I__storage_elevation.csv
inflow flood hydrograph: _infofiles/Ghelo-I__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Ghelo-I__inflow_baseflow_hydrograph.csv
breach location (supplier): _infofiles/Ghelo-I__breach_location.png
mesh: _infofiles/Ghelo-I__mesh.png
infofile: _infofiles/Ghelo-I__infofile.csv
DEM correction: _infofiles/Ghelo-I__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Ghelo-I
PAR / exposure: _par/Ghelo-I
EAP figures (exposure curve + warning scatter, log y): _figures/Ghelo-I
atlases: Ghelo-I__S_EG_00_REF__S01-FW-REF, Ghelo-I__S_EG_00__S02-FW-PIP, Ghelo-I__S_EG_01__S03-DF-REF, Ghelo-I__S_EG_03__S05-DF-PIP, Ghelo-I__S_EG_05_SBL__S08-SO-L, Ghelo-I__S_EG_05_SBR__S09-SO-H

Defect ledger

run id	status	replacement sha	old sha (do not use)
`S_EG_05_SBL`	DEFECT FIXED	`4270203365dffe4d`	`7099d317f524f668`
`S_EG_05_SBR`	DEFECT FIXED	`9593e0c430099098`	`76badfdd23de35f7`
